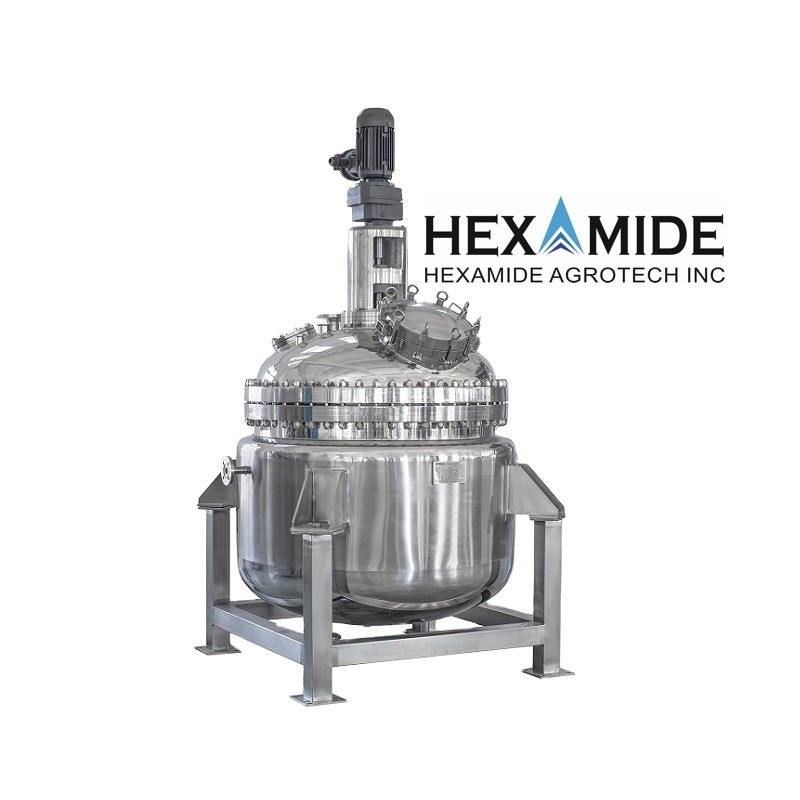

Biochemical Fermenter & Bioreactor

Precision-Engineered Equipment for Sterile Fermentation & Microbial Processing

Hexamide Agrotech INC is a leading manufacturer, supplier, and global exporter of high-precision Biochemical Fermenter and Bioreactor from Navimumbai,Mumbai Built strictly in compliance with ISO 9001:2015 quality protocols and ASME Section VIII Division 1 design standards, our fermenters are designed to meet the rigorous hygienic, sterile, and process-control demands of modern bioprocessing industries.

Whether you are scaling up aerobic bacterial cultures, fungal fermentations, recombinant protein synthesis, enzyme production, or biofuel processing, our custom biochemical fermenters ensure maximum cell density, precise dissolved oxygen (DO) control, robust thermal regulation, and guaranteed batch sterility.

Technical Specifications Overview for Biochemical Fermenter

Key Features & Process Engineering for Biochemical Fermenter

1. Superior Hygiene & CIP/SIP Sterility

Contamination control is the single most critical factor in biochemical fermentation. Hexamide fermenters feature sanitary mechanical designs engineered for effortless cleaning and complete sterilization:

• Crevice-Free Construction: Internal welds are ground flush and electro-polished to an ultra-smooth finish ($\text{Ra} < 0.4\ \mu\text{m}$), eliminating dead legs where microbial buildup could occur.

• Integrated CIP/SIP Systems: Equipped with 360-degree rotating spray balls and automated steam-sterilizable connections (SIP) to maintain closed-system sterility throughout the culture cycle.

• Aseptic Sampling Valves: Sanitary diaphragm valves allow risk-free, sterile sampling at any point during fermentation.

2. High-Efficiency Mass Transfer & Gas Exchange in Biochemical Fermenter

Optimal cell growth relies on high Oxygen Transfer Rates (OTR) without subjecting delicate cultures to excessive shear stress:

• Custom Sparging Assemblies: Advanced ring or sintered micro-spargers ensure fine gas bubble dispersion (air, $\text{O}_2$, $\text{CO}_2$, $\text{N}_2$), maximizing gas-liquid interface area.

• Precision Impeller Dynamics: Equipped with multi-stage Rushton turbines for high gas dispersion or hydrofoil impellers for low-shear, axial flow mixing, depending on microbial fragility.

• Baffle Configurations: Removable internal baffles break vortex formation and promote intense fluid turbulent shear for uniform nutrient and oxygen distribution.

3. Automated Process Monitoring & Control Integration in Biochemical Fermenter

To ensure strict batch-to-batch repeatability and optimal biological yield, our biochemical fermenters integrate seamless sensor ports for automated control systems:

• pH & DO Regulation: Automated closed-loop dosing for acid/base pumps and mass flow controllers based on real-time pH and Dissolved Oxygen feedback.

• Foam Management: Mechanical foam breakers paired with automatic anti-foam chemical injection probes prevent vessel overflow during gas-intensive phases.

• Temperature Precision: High-flow jacket circulation loops maintain process temperatures within $\pm 0.1^\circ\text{C}$, supporting rapid cooling post-sterilization.

Quality Assurance & Sanitary Validation for Biochemical Fermenter

To ensure full regulatory compliance for biological production, every biochemical fermenter manufactured at our Navi Mumbai facility undergoes complete quality validation before dispatch:

1. Hydrostatic & Leak Testing: Pressure testing of the main vessel shell and cooling jacket at 1.5x working pressure, alongside helium leak testing on aseptic seals.

2. 100% Radiography & Dye Penetrant Checks: Full NDT inspection on all pressure-retaining seams and sanitary nozzle connections.

3. Agitator Dynamic Balancing & Mechanical Run Testing: Agitator assemblies undergo dynamic balancing and continuous dry/wet run testing to prevent shaft runout and seal degradation.

4. Surface Roughness Measurement: Surface roughness profile verification ($\text{Ra}$ value test) with passivation certificates provided for all SS316L internal surfaces.

Primary Industrial Applications of Biochemical Fermenter

Our biochemical fermenter are widely deployed across biological processing sectors worldwide:

• Biopharmaceuticals: Recombinant proteins, vaccines, monoclonal antibodies, and therapeutic enzyme synthesis.

• Industrial Biotechnology: Organic acids (citric, lactic), amino acids, solvents, and specialty bio-chemicals.

• Food & Agrotech: Microbial bio-pesticides, bio-fertilizers, yeast cultivation, single-cell protein (SCP), and enzyme production.

• Biofuels & Fermented Products: Ethanol production, biomass conversion, and bioplastic (PHA/PHB) research and production.

Why Partner with Hexamide Agrotech INC?

With over 27 years of engineering expertise (est. 1999), Hexamide Agrotech INC delivers custom-engineered biochemical fermenters that merge high-grade sanitary fabrication with robust mechanical design. From pilot-scale research units to turnkey industrial fermentation suites, we offer complete design, fabrication, testing, and validation support.

Request a Customized Technical Quote for Biochemical Fermenter

Ready to optimize your bio-process yields? Contact our technical engineering team today with your organism type, vessel working volume, and process parameter requirements to receive a detailed layout drawing and commercial quote.

Precision Bioprocess Control & Sterility Assurance for Biochemical Fermenter

Hexamide Agrotech INC manufactures high-performance biochemical fermenters engineered to maintain sterile operating environments and precise kinetic control during long-term microbial processing. Built in full compliance with ASME Section VIII Division 1 and cGMP standards, our fermenters are designed with electro-polished SS316L contact surfaces ($\text{Ra} < 0.2\text{–}0.4\ \mu\text{m}$) that eliminate microscopic surface crevices where bio-burdens hide. Integrated automated Sterilization-In-Place (SIP) and Clean-In-Place (CIP) sub-systems utilize 360-degree rotating spray balls and steam-traceable sanitary connections, ensuring complete vessel decontamination between batch runs without compromising internal sterile boundaries or product integrity.

Optimized Gas Dispersion & High Oxygen Transfer Rates ($\text{OTR}$)

Achieving high cell densities in bacterial, fungal, and recombinant bioprocesses requires rapid mass transfer and continuous oxygen delivery. Our biochemical fermenters are equipped with custom-engineered sparging systems—ranging from sintered micro-spargers to multi-hole ring assemblies—paired with hydrophobic $0.2\ \mu\text{m}$ gas filtration. Combined with multi-tier Rushton turbines or high-shear impellers and removable internal wall baffles, these systems break gas streams into fine micro-bubbles. This maximizes liquid-gas contact area, optimizes dissolved oxygen ($\text{DO}$) transfer rates, and prevents localized oxygen depletion in high-viscosity broth cultures.

Dynamic Thermal Management & Shear-Sensitive Agitation of Biochemical Fermenter

Controlling exothermic metabolic heat generated during rapid cell growth is critical to maintaining biological viability and yield consistency. Featuring high-efficiency limpet coil or full outer thermal jackets, Hexamide fermenters deliver rapid heat dissipation using chilled water, glycol, or steam circulation. Agitation drives—available as top-entry mechanical seals or hermetically sealed magnetic couplings—are equipped with variable frequency drives (VFDs) to provide precise speed regulation. This allows process engineers to balance aggressive mixing for rapid nutrient distribution against gentle axial flow to protect shear-sensitive cell lines from hydrodynamic stress.

Automated Instrumentation & Turnkey Modular Integration

To support batch-to-batch repeatability and regulatory compliance, our biochemical fermenters integrate seamlessly with advanced PLC and SCADA control architectures. Dedicated sanitary nozzles accommodate real-time sensor loops for pH, dissolved oxygen ($\text{DO}$), temperature (RTD), foam detection, and optical density. Automated dosing pumps and thermal mass flow controllers (MFCs) dynamically balance gas mixes and nutrient feeds based on real-time feedback. Hexamide Agrotech INC also supplies these units as complete, factory-tested modular skids—pre-fitted with feed vessels, harvesting lines, and utility piping—dramatically reducing on-site installation timelines and accelerating plant commissioning.
